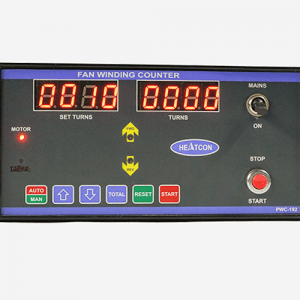

Programmable Dual Display Coil Winding Programmer
Programmable Dual Display Coil Winding Programmer
- Specification
- Download
| Model | PWC-192 |
| Over All Size | 192*96*50 mm |
| Cut Out | 188*92 mm |
| Mounting Type | Panel Mounting |
| I/P Supply | 230VAC,+/-15%,50Hz. (Other supply on Request) |
| Display method | Upper = 4-Digit 0.56” RED or White 7 Segment LED display.for PV |
| Lower = 4-Digit 0.56” RED LED 7Segment display for SV. | |
| Status LED’s | 3-Red LEDs. |
| Key Operation | 3-Function Keys. (Micro Switch feedback) |
| 4-Setting Keys. (tactile feedback) | |
| The sensor I/P | TTL Type |
| Sensor Type | IR based Photo Sensor |
| Digital Logic I/Ps. | Opto Isolated Logic I/P for Wire Break |
| Display Range | 9999 Counts |
| Control Relay O/Ps | 3-Nos |
| O/P-1: Motor Forward | |
| O/P-2: Motor Reverse | |
| O/P-3: 110VDC For Break | |
| EMC Standard | EN50081-2 & EN 50082-2 Generic Stds for Industrial Environment |
| Safety Standards | Meets EN61010, Installation Catagory II |
| Operating Ambient | 0’C to 55’C |
| Storage Temperature | -10 to +70 °C |
| Operating Humidity | 5~80%RH Non-condensing |
