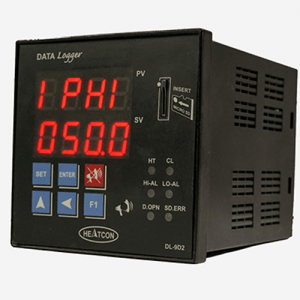

Programmable Temperature Data Logger
Programmable Temperature Data Logger
- Specification
- Download
| Model | DL-9D2 |
| Over All Size | 96*96*85 mm |
| Cut Out | 92*92 mm |
| Mounting Type | Panel Mounting |
| I/P Supply | 230VAC,+/-15%,50Hz. (Others on Request) |
| I/P Sensor | RTD |
| Display Method | Upper = 4-Digit 0.56” RED or White 7 Segment LED display.for PV |
| Upper = 4-Digit 0.56” RED or White 7 Segment LED display.for SV | |
| Measuring Range | .+/-100.0’C |
| Indication Accuracy | 0.25% of FSR Max,Software Calibrated Lineariser. |
| Display Resolution | 0.1’C |
| Setting Method | By Front Keypad |
| Control Method | Control-1 -ON/OFF & TP (Field selectable) |
| Control-2- ON/OFF ,Cooling with delay (Field selectable) | |
| Control O/P | Relay-1- 1 C/O-Relay o/p (3A@230vac) & Opto Isolated SSR o\p (+12vdc) |
| Relay-2- 1- C/O-Relay o/p (3A@230vac) or Opto Isolated SSR o\p (+12vdc) ( Factory Set) | |
| Relay-3- Audible Buzzer for High/Low Alarm | |
| Storage Media | Memory Card I/F |
| Recording Capacity | Unlimited (Depends on Memory card capacity) |
| Recording Interval | 1 to 999 Mins |
| Recording Mode | Continuous or Batch |
| Store Data Value | Date/Time ,Batch Number,PV,SV |
| OutPut Indication | LED Indication on the front panel for Each O/P status.,Memory Card absence |
| EMC Standard | EN50081-2 & EN 50082-2 Generic Stds for Industrial Environment |
| Safety Standards | Meets EN61010, Installation Catagory II |
| Operating Ambient | 0’C to 55’C |
| Storage Temperature | -10 to +70 °C |
| Operating Humidity | 5~80%RH Non-condensing |
