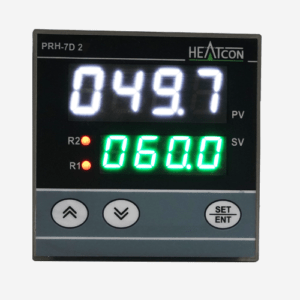

Universal I/P Dual Display % RH Controller
Universal I/P Dual Display % RH Controller.
- Specification
- Download
Model | PRH-7D2 |
Over All Size | 72*72*75 mm |
Cut Out | 68*68 mm |
I/P Supply | 230VAC,+/-15%,50Hz. |
I/P Sensor | 0.2 vdc to 3.14vdc |
Sensor Supply | Internal 5.0VDC |
Display Indication | Upper = 4-Digit 0.39” RED or White 7 Segment LED display.for PV |
(Dual display) | Lower = 4-Digit 0.28” GREEN LED display for SV. |
Range | 20.0 to 95.0 % for Humidity |
Indication Accuracy | 0.25% of FSR (Software Linearised). |
Display Resolution | 0.1 or 1.0 Count ( Selectable) |
Setting Method | By Front Keypad |
Control Method | Control-1 -ON/OFF & TP Or Auto-Tune PID (PID) (Field selectable) |
Control-2- ON/OFF with delay | |
Control O/P | Relay-1- 1 C/O-Relay o/p (3A@230vac) & Opto Isolated SSR o\p (+12vdc) |
Relay-2- 1- C/O-Relay o/p (3A@230vac) or Opto Isolated SSR o\p (+12vdc) ( Factory Set) | |
Relay-3- 1- C/O-Relay o/p (3A@230vac) or Opto Isolated SSR o\p (+12vdc) ( Factory Set) | |
Setpoint-1 | RH Main Set Point |
Setpoint-2 | D-RH |
Setpoint-2 | RH High/Low Alarm. |
OutPut Indication | LED Indication on the front panel for Each O/P status. |
EMC Standard | EN50081-2 & EN 50082-2 Generic Stds for Industrial Environment |
Safety Standards | Meets EN61010, Installation Catagory II |
Operating Ambient | 0’C to 55’C |
Storage Temperature | -10 to +70 °C |
Operating Humidity | 5~80%RH Non-condensing |
