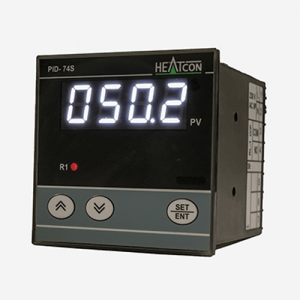

Universal I/P Single Display 1-Set Point Auto Tune PID Temperature Controller-74s
Universal I/P Single Display 1-Set Point Auto Tune PID Temperature Controller.
- Specification
- Download
| Model | PID-74S |
| Over All Size | 72*72*75 mm |
| Cut Out | 68*68 mm |
| I/P Supply | 230VAC,+/-20%,50Hz. |
| I/P Sensor (Seletable) | J/K/RTD (Field selectable) |
| Display Indication | Single 4-Digit 0.56” RED or WHITE 7 Segment LED display. |
| I/P Sensor & Range | a) J-T/C-0 to 400’C |
| b) K-T/C-0 to 1200’C | |
| c) RTD 1’C: –99’C to 400.C | |
| d) RTD-0.1: -99.9’C to 400.0’C | |
| Indication Accuracy | 0.25% of FSR or 2’C Max,Software Calibrated Lineariser. |
| Display Resolution | a) TC -1’C |
| b) RTD-1’C or 0.1’C | |
| CJC | Automatic Cold Junction compensation for TC. |
| Setting Method | By Front Key pad |
| Control Method | ON/OFF ,Cooling with delay & TP Or Auto Tune PID (PID) (Field selectable) |
| Control O/P | 1 C/O-Relay o/p (5A@230vac) & Isolated SSR o\p (+12vdc) |
| Setpoint | Single Set point. |
| Sensor Break Protection | Relay gets OFF when sensor breaks. |
| Main Relay status | By front panel LED indication. |
| Ambient Temp. | 0’C to 55’C |
| Humidity | 35 – 65%RH. |
