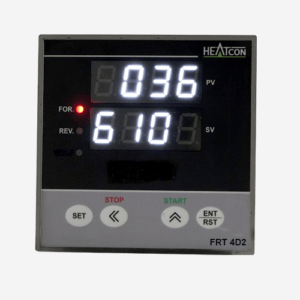

Programmable Multi Function Dual display Dosing Controller
Programmable Multi Function Dual display Dosing Cotroller
- Specification
- Download
| Model | DOT-4D2 |
| Size | 48*48*90 mm |
| Cut Out | 44*44 mm |
| Mounting Type | Panel Mounting |
| I/P Supply | 230VAC,+/-15%,50Hz. (Others on Request) |
| Timing Range | UP/Duration/Low/Total=999 Sec |
| Display Method | Upper = 4-Digit 0.39” RED 7-Segment LED display.for PV |
| Lower= 4-Digit 0.28” GREEN 7-Segment LED LED display for SV. | |
| Time Setting | Front Key Pad. |
| SetPoint | 4- Setpoint. |
| Count Direction | UP |
| Start Logic | Power ON / Front Key/External Dry Contact |
| Cycle Reset | Front Key, Power interruption. |
| Control O/P | 2-Nos of 1 C/O-Relay o/p (5A@230vac) each for UP & Low |
| OutPut Indication | LED Indication on the front panel for Each O/P status. |
| EMC Standard | EN50081-2 & EN 50082-2 Generic Stds for Industrial Environment |
| Safety Standards | Meets EN61010, Installation Catagory II |
| Operating Ambient | 0’C to 55’C |
| Storage Temperature | -10 to +70 °C |
| Operating Humidity | 5~80%RH Non-condensing |
