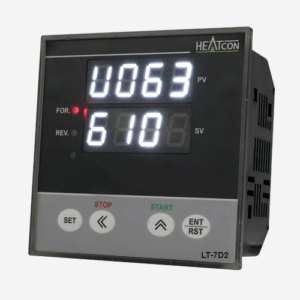

Programmable Multi-Function Dual display Washer-Extractor Controller
Programmable Multi-Function Dual display Washer-Extractor Controller
- Specification
- Download
Model | LT-7D |
Over All Size | 72*72*75 mm |
Cut Out | 68*68 mm |
Mounting Type | Panel Mounting |
I/P Supply | 230VAC,+/-15%,50Hz. (Others on Request) |
Timing Range | FOR/REV/HOLD=999 Sec |
Pre-Wash/Rinse/ Main Wash =999 Min | |
Display Method | Upper = 4-Digit 0.56” RED or WHITE 7-Segment LED display.for PV |
Lower= 4-Digit 0.39” GREEN 7-Segment LED LED display for SV. | |
Time Setting | Front Key Pad. |
SetPoint | 6- Setpoint. |
Count Direction | Down |
Power Fail Memory | Each Cycle |
Start Logic | Power ON / Front Key/External Dry Contact |
Cycle Reset | Front Key, Power interruption. |
Control O/P | 3 Nos of 1 C/O-Relay o/p (3A@230vac) each for FOR/REV/Cycle End |
OutPut Indication | LED Indication on the front panel for Each O/P status. |
EMC Standard | EN50081-2 & EN 50082-2 Generic Stds for Industrial Environment |
Safety Standards | Meets EN61010, Installation Catagory II |
Operating Ambient | 0’C to 55’C |
Storage Temperature | -10 to +70 °C |
Operating Humidity | 5~80%RH Non-condensing |
