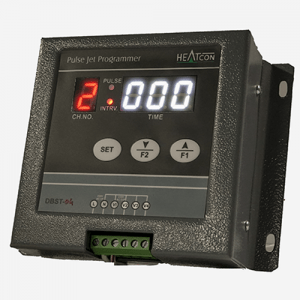

Programmable 4CH-Pulse Jet Sequential Timer
Programmable Pulse Jet Sequential Timerr
- Specification
- Download
| Model | DBST-04 |
| Description | Programmable Pulse Jet Sequential Timer |
| Over All Size | 150*110*40 mm |
| Enclosure Type | MS Powder Coated |
| Mounting Type | Flush Mounting |
| I/P Supply | 230VAC,+/-15%,50Hz.(Others on Request) |
| Timing Range | Valve ON Time : 20 to 999 ms/ 00.1 Sec to 99.9 Sec (Selectable) |
| Duaration Time : 999 Sec/Mins (Selectable) | |
| Display Method | Upper Left = 2-Digit 0.56” RED 7-Segment LED display.for CH.Number |
| Center = 3-Digit 0.56” RED or WHITE 7-Segment LED display.for Valve ON Time | |
| Upper Right = 3-Digit 0.56” RED or WHITE 7-Segment LED display.Duration Timer | |
| Time Setting | Front Key Pad. |
| Number of O/Ps | 1 to 16 Number ( Selectable) |
| Control O/P | Solid State Relay (5A@230VAC) |
| OutPut Indication | LED Indication on the front panel for Each O/P status. |
| EMC Standard | EN50081-2 & EN 50082-2 Generic Stds for Industrial Environment |
| Safety Standards | Meets EN61010, Installation Catagory II |
| Operating Ambient | 0’C to 55’C |
| Storage Temperature | -10 to +70 °C |
| Operating Humidity | 5~80%RH Non-condensing |
