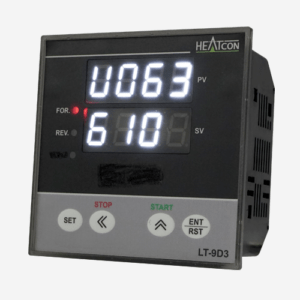

Programmable Multi-Function Dual display Washer-Extractor Controller
Programmable Multi-Function Dual display Washer-Extractor Controller
- Specification
- Download
| Model | LT-9D |
| Over All Size | 96*96*50 mm |
| Cut Out | 92*92 mm |
| Mounting Type | Panel Mounting |
| I/P Supply | 230VAC,+/-15%,50Hz.(Others on Request) |
| Timing Range | FOR/REV/HOLD=999 Sec |
| Pre-Wash/Rinse/ Main Wash =999 Min | |
| Display Method | Upper = 4-Digit 0.56” RED or WHITE 7-Segment LED display.for PV |
| Lower= 4-Digit 0.39” GREEN 7-Segment LED LED display for SV. | |
| Time Setting | Front Key Pad. |
| SetPoint | 6- Setpoint. |
| Count Direction | Down |
| Power Fail Memory | Each Cycle |
| Start Logic | Power ON / Front Key/External Dry Contact |
| Cycle Reset | Front Key, Power interruption. |
| Control O/P | 3–Nos for 1 C/O-Relay o/p (3A@230vac) each for FOR/REV/Cycle End |
| OutPut Indication | LED Indication on the front panel for Each O/P status. |
| EMC Standard | EN50081-2 & EN 50082-2 Generic Stds for Industrial Environment |
| Safety Standards | Meets EN61010, Installation Catagory II |
| Operating Ambient | 0’C to 55’C |
| Storage Temperature | -10 to +70 °C |
| Operating Humidity | 5~80%RH Non-condensing |
