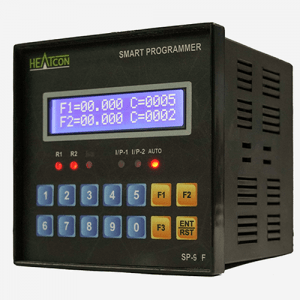

Programmable 2-CH-Flow Based Filling Programmer
Programmable 2-CH-Flow Based Filling Programmer
- Specification
- Download
| Model | SP-9LF |
| Over All Size | 96*96*50 mm |
| Cut Out | 92*92 mm |
| Mounting Type | Panel Mounting |
| I/P Supply | 230VAC,+/-15%,50Hz. (Other Supply on Request) |
| Performance | a) Excitation Voltage: +12 VDC fixed, short circuit proof. |
| b) Load Current: 85mA Max. | |
| d) Filtering: By Digital Signal Processing. | |
| h)Linearity : <0.05% of F.S /’C | |
| i)Signal I/P Range: 3500 LPM Max. | |
| k)Range Selection : 00.000 / 000.00/0000.0/00000 Ltr/mL | |
| l)Calibration Method: Digital calibration via a front keypad | |
| Display method | Alphanumeric 16×2 Line Blue Backlit LCD (4.5mm character height). |
| Status LED’s | 5-Red LEDs. |
| Key Operation | 14-Function Keys. (tactile feedback) |
| Flow Sensor I/P | 2 Nos.TTL Type |
| Flow Sensor Type | Hall Effect Type |
| Digital Logic I/Ps. | 2-Nos Opto Isolated Logic I/P for start |
| with +12VDC Ext.voltage for sensor.. | |
| Control Relay O/Ps | 2-Nos of 1c/o Relay O/P (3A@230VAC) |
| EMC Standard | EN50081-2 & EN 50082-2 Generic Stds for Industrial Environment |
| Safety Standards | Meets EN61010, Installation Catagory II |
| Operating Ambient | 0’C to 55’C |
| Storage Temperature | -10 to +70 °C |
| Operating Humidity | 5~80%RH Non-condensing |
