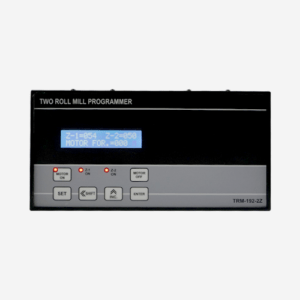

Two Roll Mill PLC
Two Roll Mill PLC
- Specification
- Download
| Model | TRM-192-2Z |
| Over All Size | 192*96*50 mm |
| Cut Out | 188*92 mm |
| Mounting Type | Panel Mounting |
| Input Supply | 230VAC,+/-15%,50Hz.(Other Supply On Request) |
| Display Method | Alpha Numeric 16X2 Line LCD Display with Blue Back Lit |
| Temperature Sensor | 2-Nos RTD for (a) Zone-1 (b) Zone-2 |
| Temperature Range | .0’C to 350’C |
| Control Method | Time Proportional Control |
| Temperature Accuracy | 0.25 % of FSR or 1’C Max, Software Calibrated Lineariser. |
| Display Resolution | 1’C |
| Setting Method | Front 4-Tact Switch Key |
| Function Keys | Front 2-Tact Switch Key |
| Control O/P | 4-Nos of 1 C/o -N/O type Relay contact ,3A@230VAC |
| (a) Zone-1 Heater (b) Zone-2 Heater (c) Motor Forward (d) Motor Reverse | |
| Digital I/P Signal | (a) Motor Reverse (b) Emergency Stop |
| O/P Relay status | By front panel 4-LED indication. |
| Operating Ambient | 0’C to 55’C |
| Storage Temperature | -10 to +70 °C |
| Operating Humidity | 5~80%RH Non-condensing |
| EMC Standard | EN50081-2 & EN 50082-2 Generic Stds for Industrial Environment |
| Safety Standards | Meets EN61010, Installation Catagory II |
