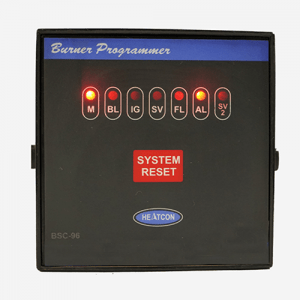

Oil Fired Burner Sequence Programmer
Oil Fired Burner Sequence Programmer
- Description
- Specification
- Download
Description
FAIL-SAFE DESIGN ADVANTAGE.
- The highly reliable field-proven system under harsh environment.
- Easy maintenance, simple installation, and commissioning procedure.
- Most reliable than other Light-dependent monitors.
- Efficient detection of LPG/Neutral gas flame.
- Unaffected by heat, ambient light or soot from the flame, since this flame detector detects flame only through flame conduction.
- If the detection system fails, Circuitry test all electronics components In the flame detection system during burner operation & shuts down the burner
- Unique excellent multi-burner operation. It can detect individual flame in multi-burner operation. This is sometimes difficult for other light-dependent monitors as they may be affected by the presence of flame at the other adjacent burners.
- It can be used as an automatic burner controller with a pilot and the main burner.
Model | BSC-96 |
Over All Size | 96*96*50 mm |
Cut Out | 92*92 mm |
Mounting | Panel Mounting. |
I/P Supply | 230VAC,+/-15%, 50Hz.(Other Supply on Request) |
Flame Sensing Method | Ionization Electrode Or UV Cell Type |
Control O/P | 5-Nos |
(a) Blower (b) Ignition © Fuel Valve-1(d) Fuel Valve -2 (e) Alarm | |
OutPut Indication | LED Indication on the front panel for Each O/P status. |
System Reset Method | Front Panel Push Button & Remote |
EMC Standard | EN50081-2 & EN 50082-2 Generic Stds for Industrial Environment |
Safety Standards | Meets EN61010, Installation Catagory II |
Operating Ambient | 0’C to 55’C |
Storage Temperature | -10 to +70 °C |
Operating Humidity | 5~80%RH Non-condensing |
