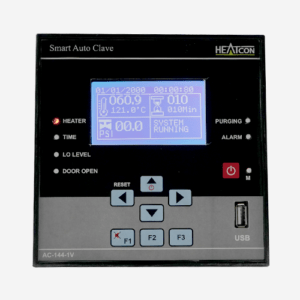

Single CH.Auto Clave Controller / Logger
Fully Prograamble Single Valve Auto Clave Programmer.
- Description
- Additional information
- Specification
- Download
Description
- Temperature Input : RTD Pt100
- Programmable Sterilization Timer with Guaranteed Soak Time
- High Temperature Safety Alarm
- Computed Saturated Steam Pressure Display
- Independent Purging and Sterilization Set-points
- Independent Outputs for Air Valve & Steam Control
- All phases of the cycle such as steam generation process, auto air-purging phase, sterilization and auto steam-exhaust phase proceed automatically. If any errors are depicted they are printed via Thermal printer as well as displayed on Graphic Screen
- On screen you can see the messages being displayed of each and every process running at that time;for example: initial heating,purging on ,purging off,sterilization on, evacuating on, System ready
- Temperature Dependent Cycle Resumption Upon Power Interruption
- Automatic steam exhaust at the end of cycle.
• Digital Inputs for Door Open & Low Water Level Detection
• In Built Thermal printer interface for direct printout of the logged data as well as messages.
• Messages are printed in detail with each and every process starting temperature and time getting logged; for example :Purging on start temp. and time, Purging off start temp. and time, Sterilization start temp. and time , evacuating start temp. and time
• USB interface for data logging on PC upto 1000 logs - Direct Printout of Report On Thermal Printer & USB Pen Drive.
- USB PEN Drive Detection Message ON display.
Additional information
| Over All Size | 72*72*75 mm |
|---|---|
| Cut Out | 68*68 mm |
| I/P Supply | 230VAC,+/-20%,50Hz. |
| I/P Sensor (Seletable) | J/K/RTD (Field selectable) |
| Display Indication | Single 4-Digit 0.56'' RED or WHITE 7 Segment LED display. |
| I/P Sensor & Range | a) J-T/C-0 to 400'C |
| Indication Accuracy | 0.25% of FSR or 2'C Max,Software Calibrated Lineariser. |
| Display Resolution | a) TC -1'C |
| CJC | Automatic Cold Junction compensation for TC. |
| Setting Method | By Front Key pad |
| Control Method | ON/OFF ,Cooling with delay & TP Or Auto Tune PID (PID) (Field selectable) |
| Control O/P | 1 C/O-Relay o/p (5A@230vac) & Isolated SSR o\p (+12vdc) |
| Setpoint | Single Set point. |
| Sensor Break Protection | Relay gets OFF when sensor breaks. |
| Main Relay status | By front panel LED indication. |
| Humidity | 35 – 65%RH. |
| Model | AC-144-1V |
| Display | |
| Digital Readout | Mono Chrom Graphics LCD 128×64 with Blue or Green Back Lit. |
| Status Indicators | 6 Red LEDs (3mm ) Heater/Valve/Purging ON/Sterli.ON/Alram/System ON |
| Keys | |
| Type | 8 Tactile Switches |
| Functions | MAINS ON/OFF ,SET, DOWN, UP,LEFT,RIGHT, AL ACK,,ENTER |
| Sensor Input | |
| Type | 1-No RTD (Pt100), 3 wire |
| Display Range | 0 to 150.0’C |
| Display Resolution | 0.1’C for Temp. & 00.0 PSI for Pressure. |
| Accuracy | ± 0.25% of reading ± 1°C |
| Sterilization Timer | |
| Operation Mode | Soak Time at Sterilization Setpoint with Hold Band |
| Range | 1 to 999 Minutes |
| Power-fail Recovery | Resume, Reset, Abort |
| Chamber Heater Control | |
| Type | ON-OFF |
| Output (OP-1) | Relay Change-over Contacts 3A Resistive @ 120/240 Vac or SSR Drive ( Factory Set) |
| Air Purging Control | |
| Control Type | ON-OFF |
| Output (OP-2) | Relay Change-over Contacts 3A Resistive @ 120/240 Vac or SSR Drive ( Factory Set) |
| Alarms | |
| Functions | High Temperature Deviation, End-of-Sterilization, Low Water Level,Door Open |
| Output (OP-3) | 12VDC O/p for Buzzer |
| Data Recording | |
| Storage Device | USB PEN Drive ,Inbuilt Data Memory Up to 1000 Reading. |
| Thermal Printer | |
| Recording Interval | User Programmable |
| Recording Data | Batch Number |
| (Date/Time Stamped) | Operator Name |
| Process Values of Temperatures & Pressure | |
| Start Command | |
| Air Valve Close | |
| Sterilization Start | |
| Air Valve Open | |
| Sterilization End | |
| Power Supply | |
| Line Voltage | Standard : 85~264 VAC, 50/60Hz (Optional : 18~36 VDC) |
| Consumption | 5VA Max |
| Physical | |
| Mounting | Panel Mounting Clamps |
| Overall Dimensions | 144(H) X 144(W) X 130(D), mm |
| Panel Cutout | 140(H) X 140(W), mm |
| Environmental | |
| Operating Ambient | 0’C to 55’C |
| Storage Temperature | -10 to +70 °C |
| Operating Humidity | 5~80%RH Non-condensing |
| EMC Standard | EN50081-2 & EN 50082-2 Generic Stds for Industrial Environment |
| Safety Standards | Meets EN61010, Installation Catagory II |
